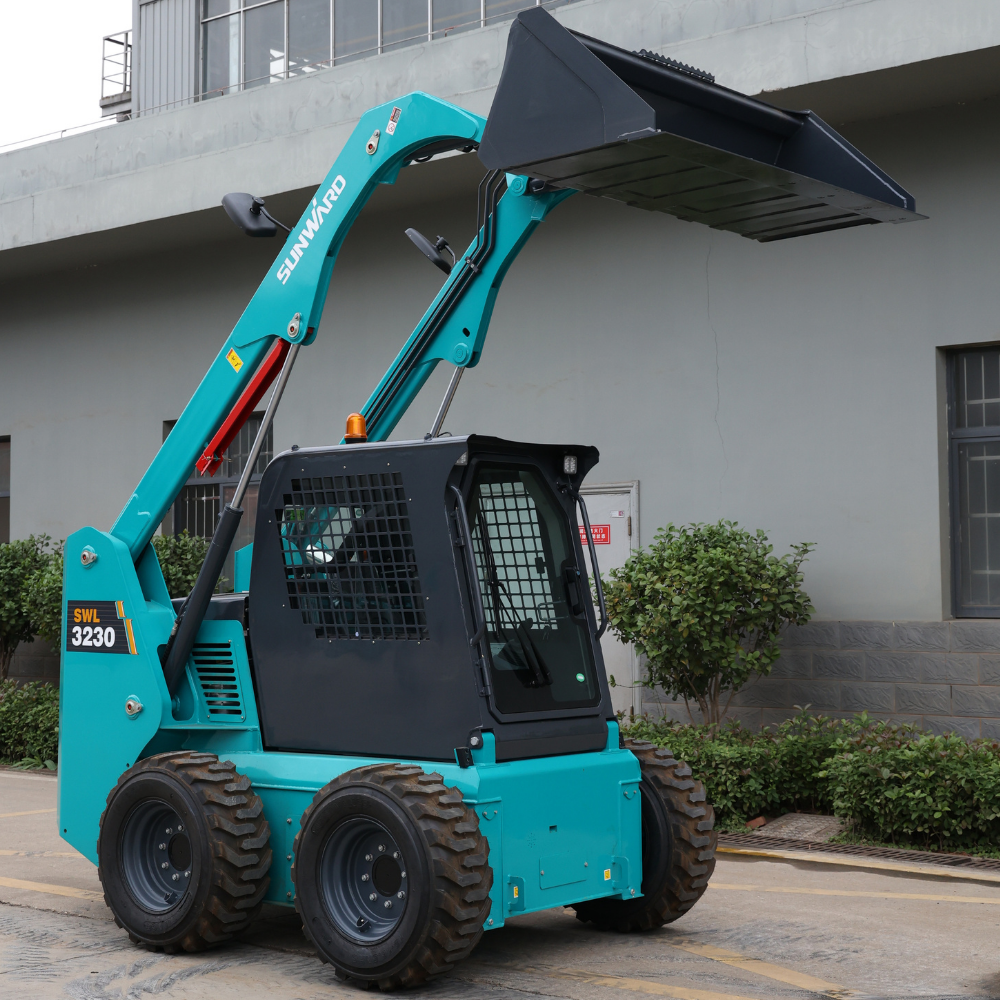

SWL 3230

Sunward_SWL 3230_MAINSunward_SWL 3230_MAIN

SWL 3230

Need for a compact and versatile skid-steer loader with good lift capacity and plenty of power?

The Sunward SWL 3230 skid steer loader is highly versatile and compact enough to be easily maneuverable in small spaces. Despite its compact size, you will be impressed by the great breakout force and huge lift capacity. The powerful Kubota engine offers performance, exceptional reliability, long service life and complies with the European Union’s Stage V emission requirements.

Rated operating capacity

Tipping load

Rated power output

Operating weight

Lift height

Breakout force (bucket)

INTERESTED? CONTACT YOUR NEAREST DEALER
Share:

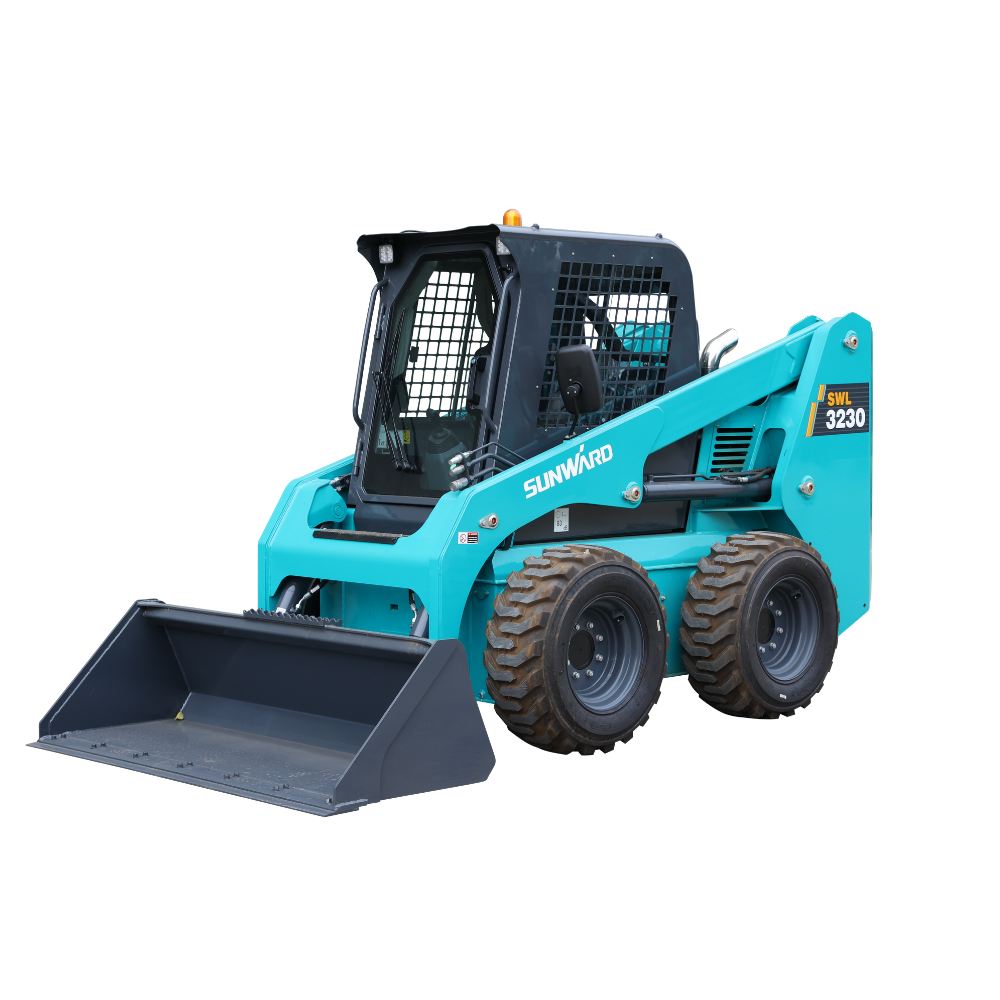

SUNWARD SWL 3230

Need for a compact and versatile skid-steer loader with good lift capacity and plenty of power?

The Sunward SWL 3230 skid steer loader is highly versatile and compact enough to be easily maneuverable in small spaces. Despite its compact size, you will be impressed by the great breakout force and huge lift capacity.

The powerful Kubota engine offers performance, exceptional reliability, long service life and complies with the European Union’s Stage V emission requirements. Maintenance and service are also easily accessible.

Daily maintenance is very easy since service checkpoints and cooling system components are accessible at ground level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.

When it comes to comfort, the SWL 3230 offers a spacious cab with a wide entrance, a comfortable seat, ergonomic controls, and excellent all-around visibility.

Last but not least, safety is not at rest thanks to the ROPS/FOPS cab coupled with the excellent visibility and great stability of the machine.

Discover all the other advantages of the Sunward SWL 3230.

DIMENSIONS & WEIGHT

Operating weight 3 500 kg
Length without bucket 2 958 mm
Length with standard bucket 3 727 mm
Width without bucket 1 475 mm
Height to top of ROPS 2 068 mm
Ground clearance 205 mm
Turning radius from center (standard bucket) 2 201 mm

ENGINE

Model Kubota V3307-CR-TE5B
Emission rating EU Stage V
Rated power output 55.4 kW

PERFORMANCE

Rated operating capacity 1 100 kg
Tipping load 2 200 kg
Bucket breakout force (standard bucket) 2 480 kg
Boom breakout force 2 430 kg
Travel speed 12.6 km/h

MADE FOR EUROPE

Like all the Sunward machines on the European market, the SWL 3230 is designed to meet European customer needs and has all the EU certifications.

BUILT FOR MULTITASKING

The Sunward SWL 3230 skid steer loader has been built with versatility and compactness in mind, to be easily maneuverable in small spaces.

A skid-steer versatility starts with how well it is designed for transportation. The SWL 3230 does more than simply align with the EU’s transportation regulations – truly compact (1 475 mm width) and lightweight (3 500 kg), its small frame allows easy, safe, and secure transport behind a pickup truck.

The SWL 3230 can be easily fitted with a wide range of attachments to answer a variety of applications, with perfect control of all functions thanks to the joysticks and double-accelerator control (manual or foot pedal).

RELIABLE PERFORMANCE

Despite its compact size, the SWL 3230 has impressive breakout force, huge lift capacity, and fast cycle times.

The powerful Kubota V3307 engine delivers a power of 55.4 kW (@2 600 rpm) and offers exceptional reliability even in severe, high load conditions, long service life and complies with the European Union’s Stage V emission requirements.

COMFORT AS STANDARD

The comfort of the Sunward SWL 3230 starts with easy cab access. Once seated, the SWL 3230 offers a spacious cab, air conditioning, a comfortable seat, and ergonomic controls for maximum operating comfort.

Operators will be also impressed by the excellent all-around visibility. It is a real pleasure to operate a Sunward skid-steer.

SERVICE MADE EASY

Because we care about your operative costs, maintenance and service have been made easy. Daily preventive maintenance is very simple since service checkpoints and cooling system components are accessible at ground level from the rear door. When it comes to service, major components are also easily and quickly accessible by tilting the ROPS/FOPS cab.

SAFETY IS NOT AN OPTION

Safety is and will always be a priority for Sunward. The SWL 3230 has been designed for operator safety.

Thus, the ROPS/FOPS cab and rear window exit coupled with the excellent visibility and great stability of the machine guarantee maximum safety.

A seat switch and armbar switch also prevent the machine from being started without an operator present.

In terms of systems, the SWL 3230 skid steer has been equipped with an emergency descent function, so that the boom can safely conduct the emergency descent n the event of an unexpected engine shut down.

SUNWARD SWL 3230 Product brochure
