The Sunward SWE 35UF mini excavator is the largest mini excavator in the Sunward range. The zero-tail SWE35UF can handle bigger projects than its smaller companions, while also maintaining good performance, maneuverability, and speed on the job. With a ROPS / FOPS cab outfitted with A/C and heat, this machine can keep going no matter what.
|Max. digging depth|

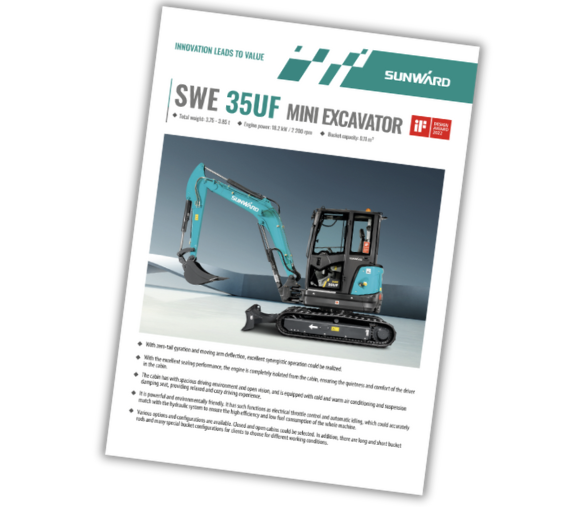

SUNWARD SWE 35UF
The Sunward SWE 35UF mini excavator is the largest mini excavator in the Sunward range. The zero-tail SWE35UF can handle bigger projects than its smaller companions, while also maintaining good performance, maneuverability, and speed on the job. With a ROPS / FOPS cab outfitted with A/C and heat, this machine can keep going no matter what. In the Sunward tradition to always offer the best value for money, the SWE 35UF is no exception since it offers many features and up to 3 years of warranty as standard, at the right price. Of course, because we know that safety and comfort should go hand-in-hand, the SWE 35UF keeps you safe and provides every comfort in all working conditions.
Discover all the other advantages of the Sunward SWE 35UF.
TYPE OF CAB
|Type of cab||Cab or Canopy|
|Operating weight||3 850 ‒ 3 750 kg|
|Standard bucket capacity||0,11 m³|
|Shipping length||4 890 mm|
|Shipping width||1 700 mm|
|Height over cabin||2 555 mm|
|Emission rating||EU Stage V|
|Rated power output||18.2 kW|
|Type||1 variable piston pump|
|Hydraulic pressure||24.5 Mpa|
|Max. digging depth||3 120 mm|
|Max. digging reach||5 390 mm|
|Max. bucket digging force||31.8 kN|
|Max. arm digging force||22.53 kN|
MADE FOR EUROPE
On top of its EU certification, the Sunward SWE 35UF, like all Sunward machines on the European market, is designed to meet European customer needs.
POWERFUL & RELIABLE ENGINE
We chose the powerful Kubota D1703 engine for several good reasons. This engine is a vertical, water-cooled, 4-cycle diesel engine with a capacity of 18.2 kW at 2200 rpm. Featuring a built-in solenoid, low fan position, and single side serviceability, the Kubota D1703 offers powerful performance, exceptional reliability and long service life to meet a wide range of applications. The perfect fit for our reliable and versatile SWE 35UF.
All key components in Sunward excavators are carefully selected, from Kubota engine to hydraulics. Because hydraulics are often regarded as the heart of the machine, Sunward sources exclusively from the highest references in the market. For our Sunward SWE 35UF, we selected HENGLI to be our main supplier for the hydraulic pump, and KYB or Nachi for the swing motor traveling and swing motor. All these pumps and components for construction machinery are efficient, reliable, and space-saving. So, it’s no coincidence that Sunward selected them to contribute to the SWE 35UF’s reliability.
HIGH WORKING RANGE
The SWE 35UF has exceptional digging forces – 31.8 kN (bucket) and 22.53 kN (arm) – easily rivaling all 3.5t excavator competitors on the market. And when it comes to its long-reach capacity, the SWE 35UF’s boom cylinder design provides a ground reach of over 5.2 meters (5 260 mm) and a digging reach that’s over 5.3 meters (5 390 mm) long – making this mini excavator the benchmark of its range.
READY FOR A VARIETY OF APPLICATIONS
A mini-excavator’s versatility starts with how well it is designed. The SWE 35UF is a zero-tail mini excavator with truly compact dimensions (1 700 mm width) and lightweight (3 850 ‒ 3 750 kg), allowing to bring power and easy work even if very tight areas, without any compromise on safety. Moreover, the SWE 35UF can adapt to any job site, thanks to the complete auxiliary settings built-in as standard – providing fully adjustable pressure and flow monitoring. This results in no less than 3 separate auxiliary lines as standard (while the market provides 1 to 2 lines as standard). Thus, a wide range of attachments can be easily fitted to answer a variety of applications.
WELL-EQUIPPED FROM THE OUTSET
This slightly Sunward SWE 35UF mini excavator has it all from the day it leaves the factory:
– Auto idle engine to save fuel and limit the engine’s consumption. – While other manufacturers usually use a flow throttle (because it’s cheaper), we at Sunward opt for a Load Sensing (hydraulic) system, which provides better energy-saving possibilities.
– Safety valves for the boom cylinder for safer operations.
– Auto-shifting traveling motor for smooth operations to the operator.
– TOPS & FOPS cab.
– Battery cut-off switch for safer operations and prolonged battery lifetime and power – which is especially appreciated in the cold weather of Scandinavian countries.
– Double Acting Hydraulic Circuit
– Factory-fitted Hydraulic Quick Hitch Lines
– Factory-fitted Hammer & Rotation Line
– Factory-fitted Case Drain Line
– Factory-fitted One hydraulic pilot control with a double contact switch
– Factory-fitted Tiltrotator Configured Joystick Controls (tiltrotator of your choice)
– 4 LED work lights as standard: 2 on the front of the cab, 1 on the left side of the boom, and 1 on the back
EASY TO MAINTAIN
To reduce maintenance time and cost for the SWE 35UF, the covers at the rear and on the side provide direct access to the service points. The standard service points – for fuel, oil, and air filters – are directly accessed via the cover at the rear. So, with very easy access to the fuel tank and centralized grease fittings, these mini excavators are as easy to maintain as they are to operate.
BEST VALUE FOR MONEY
Sunward is your smartest investment in reliability, performance, and high ROI. Indeed, the SWE 35UF’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 3 years of warranty, standard for all Sunward products.
