SWE 20F

SWE20F MAINSWE20F MAIN

SWE 20F

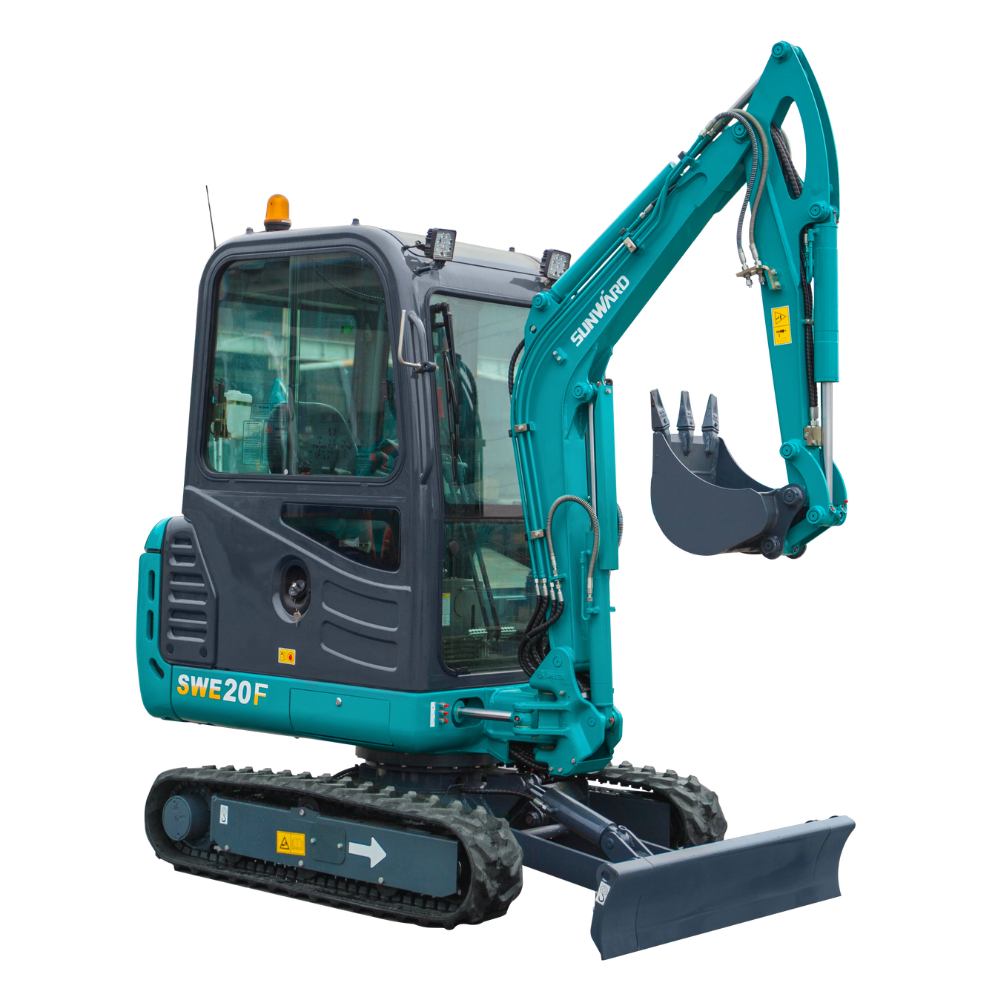

The Sunward SWE 20F mini excavator is our bestseller in the European market. This proven mini excavator is excelling in terms of durability, reliability, performance and easy maintenance. It’s weight category and extendable undercarriage make it very easy to transport. The SWE 20F keeps you safe and provides every comfort in all working conditions.

Emission rating

Operating weight

Power output

Max. digging depth

Width

INTERESTED? CONTACT YOUR NEAREST DEALER
Share:

SUNWARD SWE 20F

The Sunward SWE 20F mini excavator is our bestseller in the European market. This proven mini excavator is excelling in terms of durability, reliability, performance and easy maintenance. Its weight category makes it very easy to transport, aligning with the EU’s transportation regulations. With the SWE 20F’s extendable undercarriage from 990 mm to 1 360 mm you can count on robust stability, ensuring safe and comfortable operation in all kinds of job applications. In the Sunward tradition to always offer the best value for money, the SWE 20F is no exception since it offers many features and up to 5 years of warranty as standard, at the right price. Of course, because we know that safety and comfort should go hand-in-hand, the SWE 20F keeps you safe and provides every comfort in all working conditions.
Discover all the other advantages of the Sunward SWE 20F.

TYPE OF CAB

Type of cab Cab or Canopy

DIMENSIONS

Operating weight 1 840 – 1 940 kg
Standard bucket capacity 0,04 m³
Shipping length 3 820 mm
Shipping width 990 mm
Height over cabin 2 210 mm

ENGINE

Model Yanmar  3TNV80F-SSU
Emission rating EU Stage V
Displacement 1.267 L
Rated power output 13.4 kW

HYDRAULIC SYSTEM

Type 2 variable piston pumps + 1 gear pump + 1 pilot gear pump
Displacement 2*21+13.2+6 L/min
Hydraulic pressure 21+16 Mpa

WORKING RANGE

Max. digging depth 2 380 mm
Max. digging reach 3 940 mm
Max. bucket digging force 21 kN
Max. arm digging force 12 kN

MADE FOR EUROPE

On top of its EU certification, the Sunward SWE 20F, like all Sunward machines on the European market, is designed to meet European customer needs.

POWERFUL & RELIABLE ENGINE

We chose the powerful Yanmar 3TNV80F-SSU engine featuring low fuel consumption, low noise and vibration levels, and high-altitude performance control, ensuring intensive work in a severe environment. This 13.4 kW industrial diesel engine is both EPA Final Tier 4 and EU Stage V compliant, and its compact design means it can fulfill a variety of roles. The Yanmar engine perfectly matches with the power of the hydraulic system, guarantying smooth operation. This engine is the perfect fit for our reliable and versatile Sunward SWE 20F.

PREMIUM COMPONENTS

All key components in Sunward excavators are carefully selected, from Yanmar engine to hydraulics. Because hydraulics are often regarded as the heart of the machine, Sunward sources exclusively from the highest references in the market. For our Sunward SWE 20F, we selected Japanese premium brand NACHI to be our main supplier for the hydraulic pump and traveling and swing motor. NACHI pumps and components for construction machinery are efficient, reliable, and space-saving. So, it’s no coincidence that Sunward selected them to contribute to the SWE 20F’s reliability.

FLEXIBLE AND STABLE

The SWE20F’s extendable undercarriage – the track width can be extended from 990 mm to 1360 mm – provides sturdy stability, ensuring safe and comfortable operation in all kinds of job applications. The adjustable crawler track is ideal in confined areas or when greater stability is required.

HIGH WORKING RANGE

The SWE 20F has exceptional digging forces of over 22.7 kN (bucket) and almost 10 kN (arm), which easily rival the 2-ton excavator competitors on the market. And when it comes to its long-reach digging capacity, the SWE 20F’s boom cylinder design provides a reach that’s over 1 meter (1 150 mm) long.

READY FOR A VARIETY OF APPLICATIONS

A mini-excavator’s versality starts with how well it is designed for transportation. The SWE 20F does more than simply align with the EU’s transportation regulations – truly compact (990 mm width) and lightweight (1 840 kg), it allows easy, safe, and secure transport. With an automatic slew lock and 4 easily accessed tiedown points on the undercarriage, the machine can be safely transported on a small trailer with up to 3 buckets and a hydraulic breaker, while maintaining a total transport weight close to 2 tons. The SWE 20F can adapt to any job site, thanks to the complete auxiliary settings built-in as standard – providing fully adjustable pressure and flow monitoring. This results in no less than 3 separate auxiliary lines as standard (while the market provides 1 to 2 lines as standard). Thus, a wide range of attachments can be easily fitted to answer a variety of applications.

BEST VALUE FOR MONEY

Sunward is your smartest investment in reliability, performance and high ROI. Indeed, the SWE 20F’s expert design includes a well-thought-out selection of components that streamline operation and maintenance. Our design choices result in a machine that provides so many standard features, premium-brand key components, and capabilities at the right price.
And furthermore, Sunward’s own genuine spare parts are economical as well – and all of this best value for money is crowned by up to 5 years of warranty, standard for all Sunward products.

Product brochure
